Chaffoteaux PIGMA ADVANCE 25kW Condensation boiler 3310622
KIT 3310622
3234090852998
Chaffoteaux PIGMA ADVANCE Condensation boiler Instant DHW capacity:
- 25kW power
- Compatible with Methane/LPG/Propane air
- Heating energy class A
- Energy class in sanitary applications A
- XL withdrawal profile.

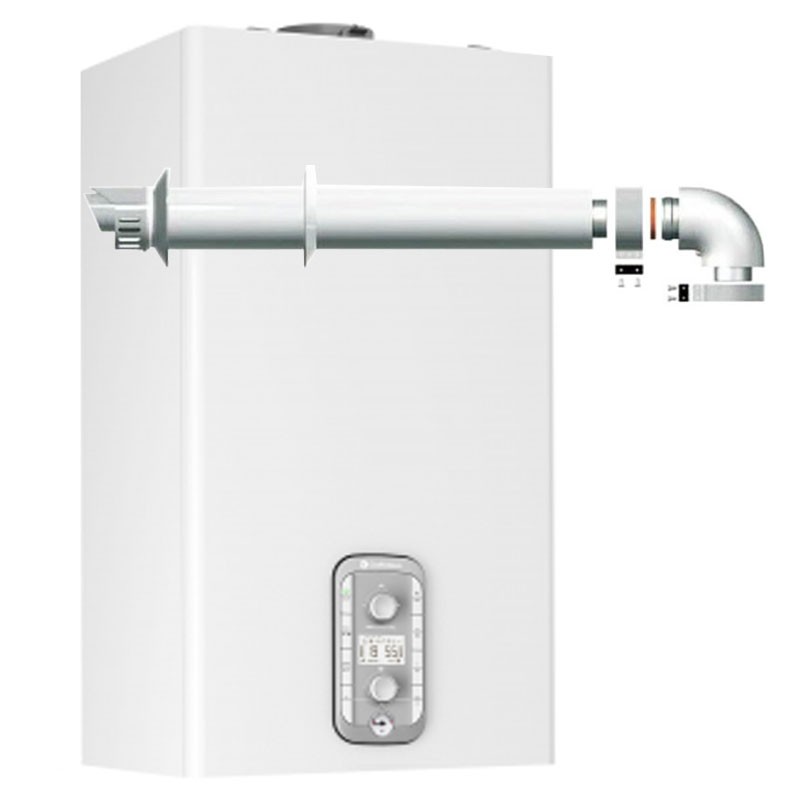

Included in the Chaffoteaux 60/100 Coaxial Flue Outlet Kit for boilers 3318073.
Natural gas, LPG and propane air operation with conversion kit included as standard.
Chaffoteaux PIGMA ADVANCE 25kW Condensation boiler 3310622
€1,144.32
Tax included
€1,144.32
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 6
Pay in installments with Klarna
Frequently bought together
- -50%
- -50%
MAXIMUM PERFORMANCE: SPINTECH:
- New single loop stainless steel primary exchanger
- Passage sections increased by 142% compared to the previous version
- 1 m more head
- Seasonal efficiency at 94%.
- Class A+ attainable with thermoregulation
- Performance certified by TÜV RHEINLAND Group.
MAXIMUM COMFORT:
- 1:7 modulation ratio.
- Electronic combustion control E-Burning System
- Optimized internal silencer
- Gas conversion from the technical menu without the need for a kit
- Ready for Chaffolink connectivity.
EASY INSTALLATION:
- Installation in partially protected places
- Smoke exhausts 80, 60, 50 mm
- Intuitive electrical connections.
ENERGY SAVING AND ENVIRONMENTALLY FRIENDLY:
- Up to 20% energy saving in combination with Expert Control and the SRA function
- Up to 30% energy saving by combining Expert Control, SRA function, external probe and radiant floor heating
- Reduced pollutant emissions, NOx Class 6.
Pigma Advance, the efficient and performing solution. Equipped with the innovative SpinTech exchanger and ready for connectivity, it is perfect for customers who want affordable comfort. Installable in partially protected locations.
Features:
- CE certification (pin) 0085CR0393
- Connection type C13(X)-C23-C33(X)-C43(X)-C53(X)-C63(X)C83(X)-C93(X)-B23-B23P-B33
- Max/min nominal heat input in heating mode (Hi) Q 22,0 / 3,7 kW
- Max. rated heat flow rate in heating mode/min (Hs) Q 24.4 / 4.1 kW
- Max. domestic hot water flow rate/min (Hi) Q 26.0 / 3.7 kW
- Max. domestic hot water flow rate/min (Hs) Q 28.9 / 4.1 kW
- Max. heating output/min (80°C-60°C) P 21.4 / 3.4 kW
- Max. useful heating output/min (50°C-30°C) P 23.6 / 3.95 kW
- Max. useful power/min DHW P 24.9 / 3.5 kW
- Combustion efficiency (at flue gas) 98,0%
- Efficiency at nominal heat input (60/80°C) Hi/Hs 97.5 / 87.8%
- Efficiency at nominal heat input (30/50°C) Hi/Hs 107,3 / 96,7%
- Efficiency at 30 % of Qn with return at 30°C Hi/Hs 109,8 / 98,9%
- Yield at minimum (60/80°C) Hi/Hs 93,1 / 83,8%
- Losses at chimney burner operating 2%.
Emissions
- Residual evacuation head PA 100
- NOx class 6
- Smoke temperature (G20) (80°C-60°C) 61 C
- CO2 content (G20) (80°C-60°C) max/min 9.2 / 8.9%.
- CO content (0%O2) (80°C-60°C) 141.8 ppm
- O2 content (G20) (80°C-60°C) 3,9%
- Maximum smoke flow rate (G20) (80°C-60°C) 42.1kg/h
- Excess air (80°C-60°C) 23%.
- Condensate pH 3,2 pH
- Max quantity of condensate 2,4 l/h.
Heating circuit:
- Expansion tank pre-charge pressure 1 bar
- Maximum heating pressure 3 bar
- Expansion tank capacity 8 litres
- Min/max heating temperature (high temperature range) 35 / 82 Degrees
- Min/max heating temperature (low temperature range) 20 / 45 Degrees.
Sanitary Circuit
- Sanitary temperature min/max 36 / 90 degrees
- Specific DHW flow rate (10 min. with ?T=30°C 12,1 l/min
- Instantaneous quantity of hot water ?T=25°C 15.5 l/min
- Instantaneous quantity of hot water ?T=35°C 10.4 l/min
- Domestic comfort stars (EN13203) ***
- Minimum hot water withdrawal 2 l/min
- Domestic water pressure max/min 7,0 / 0,2 bar.
Technical data:
- Supply voltage/frequency 230/50 V/Hz
- Total electrical power consumption 77W
- Energy efficiency index of the circulator EEI ? 0,23
- Minimum ambient temperature (-5°C with standard antifreeze heater kit code 3318949) >0 Degrees
- Degree of protection of electrical system IPX5D
- Weight 29,7 Kg.

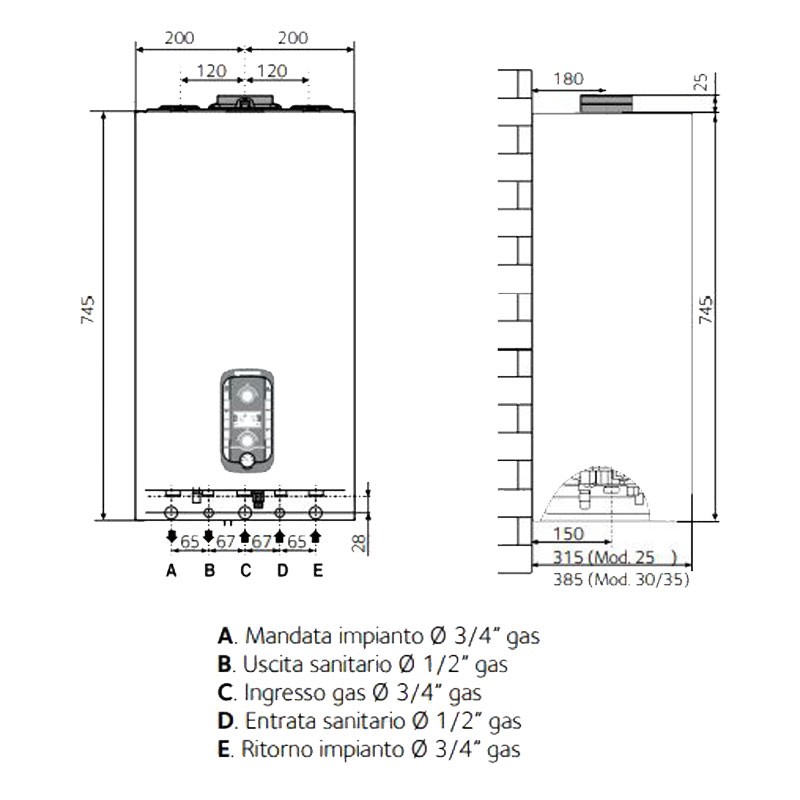

Connections:
- Plant delivery Ø 3/4 gas
- Sanitary outlet Ø 1/2 gas
- Gas inlet Ø 3/4 gas
- Sanitary inlet Ø 1/2 gas
- System return Ø 3/4 gas
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas/LPG/Propane
- Thermal power: 25 kW
- Energy class: A
- Series: Pigma Advance
