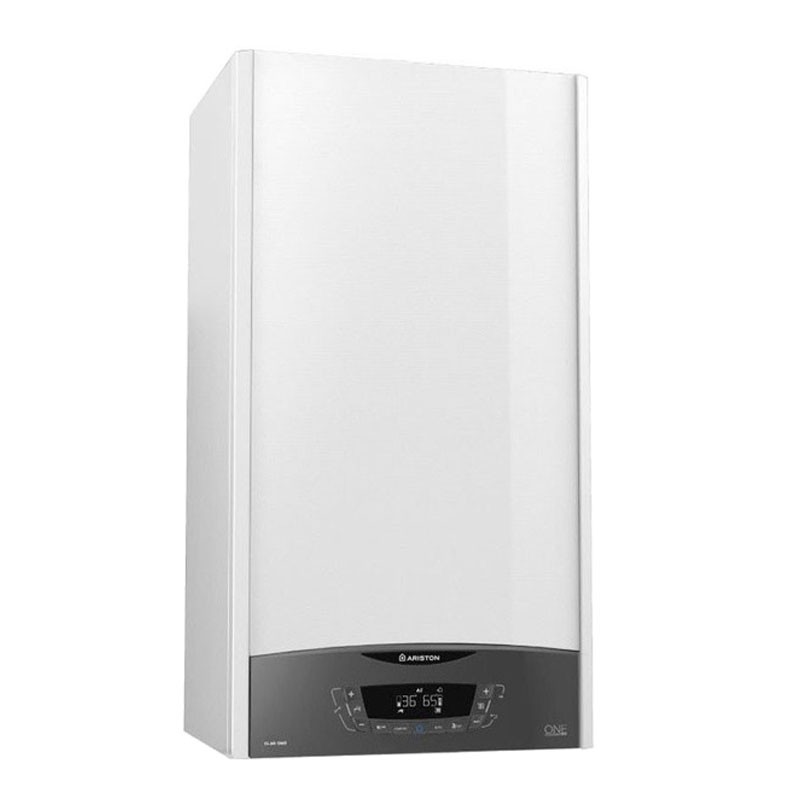

Ariston CLAS ONE SYSTEM 24kW Methane Watertight Condensation Boiler 3301031
ARS 3301031
5414849691995
Ariston CLAS ONE SYSTEM 24kW Methane sealed condensing boiler for heating only, ideal for creating systems (hybrid, solar, boiler with external tank). It is built on the basis of the new Per4mance System of the ONE Series with four technologies that ensure particularly high performance. Energy class A.
Integrated three-way valve and boiler probe as standard, Methane and LPG operation with conversion kit included as standard.
Ariston CLAS ONE SYSTEM 24kW Methane Watertight Condensation Boiler 3301031
€1,095.98
Tax included
€1,095.98
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Frequently bought together
Auto function:
- Maximum comfort, efficiency and energy saving based on automatic analysis of environmental conditions, connected external devices and required performance.
Comfort Function:
- speeds up the delivery of hot water in two modes: Comfort Plus Mode (always hot water in just 5") and Comfort Mode (hot water for 30' after the last draw).
Advantages:
- Maximized durability thanks to Ariston's exclusive XtraTech heat exchanger
- Compact structure for easy installation

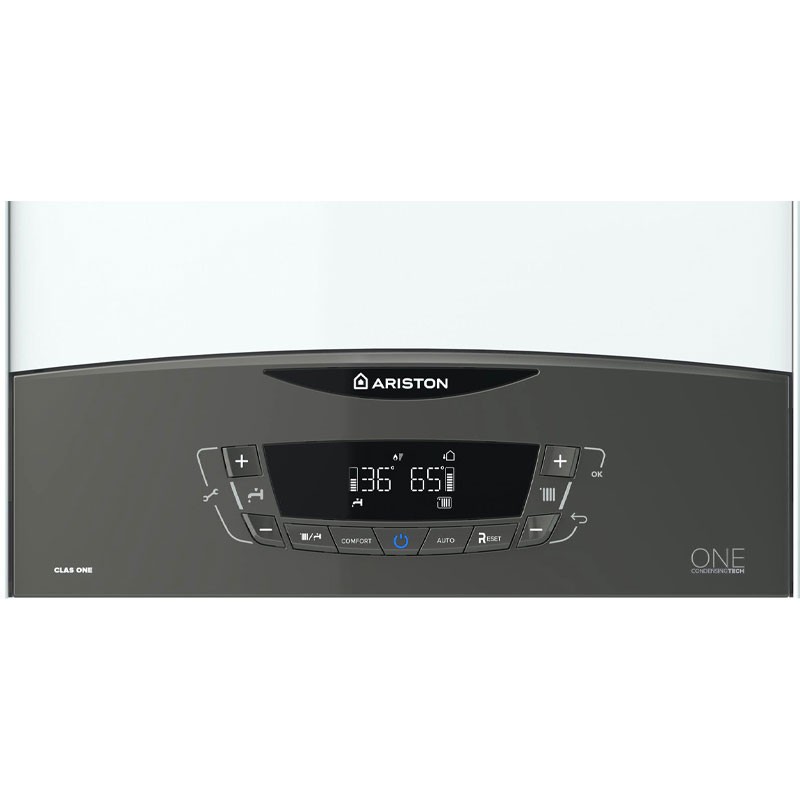

- LCD display
- Compatible with the CUBE S NET Wi-Fi thermostat that allows connection to the Ariston NET App
- Compatible with the Ariston NET App for remote control
- Class A+ in heating mode achievable with thermoregulation
- Modulation ratio 1:7
- Ready for Ariston NET connectivity
- BusBridgeNet® communication protocol
- AUTO function
- Optimized internal silencer
- Installation in partially protected places
- Smoke outlet 80, 60, 50 mm.
Characteristics
- max/min nominal heat input for heating PCI kW 22.0 / 3.7
- max. nominal heat output/min heating PCI kW 26.0 / 3.7
- max/min heating capacity PCI kW 21,4 / 3,4
- efficiency at nominal heat output (60/80° c) PCI % 97,5
- efficiency at nominal heat output (30/50° c) PCI % 107,3
- Efficiency at 30% (30° c) PCI % 109,8
- max/min heating temperature (high temperature) °C 82 / 35
- max/min heating temperature (low temperature) 45 / 20 °C
- 45 / 20 Max. temperature/min. sanitary °C
- minimum operating temperature (-5°C with antifreeze kit)* °C > 0
- supply voltage/frequency V/Hz 230 / 50
- total electric power consumption W 77,0
- degree of protection of the electrical system IP X5D
- Losses at the chimney with burner operating 2%
- Residual evacuation head Pa 100
- Nox class 6
- Smoke temperature (G20) (80°C-60°C) °C 61
- CO2 content (G20) (80°C-60°C) max /min % 9,2 / 8,9
- Flue gas mass flow rate (G20) (80°C-60°C) Kg/h 42,1
- Air excess (80°C-60°C) % 23
- Expansion vessel preload pressure bar 1
- Maximum heating pressure bar 3
- Min/max heating temperature (high temperature range) °C 35 / 82
- Heating temperature min/max (low temperature range) °C 20 / 45
- Min/max sanitary temperature - CLAS ONE °C 36 / 60
- Energy efficiency index of the circulator > 0,23
- Protection rating of electrical system IP X5D
- Weight 29,7 Kg.
Connections
- System delivery Ø 3/4 gas (cylinder delivery if present)
- Boiler return (if present) Ø 1/2 gas
- Gas inlet Ø 3/4 gas
- System water inlet Ø 1/2 gas
- System return Ø 3/4 gas
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas/LPG
- Thermal power: 24 kW
- Energy class: A
- Series: Clas one System
