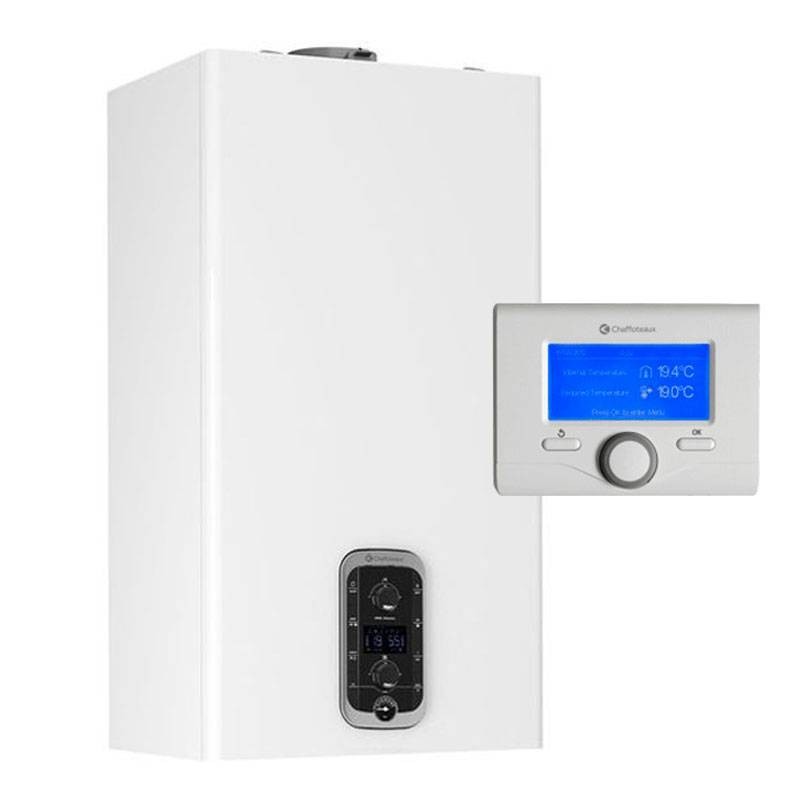

Chaffoteaux URBIA ADVANCE LINK 25kW MET/LPG/AP Condensation Boiler 3310609
CFF 3310609
8056860778070
Chaffoteaux URBIA ADVANCE LINK Condensation Boiler:
- Heating/sanitary heating capacity 25kW
- Natural gas/LPG/Propane air operation without the need for a kit
- XL withdrawal profile
- Heating energy class A
- Sanitary energy class A
- Integrated 4-liter micro storage tank
Integrated standard accessories:
- Gateway connectivity Electronic combustion control and integrated Chaffolink connectivity at your smartphone's fingertips

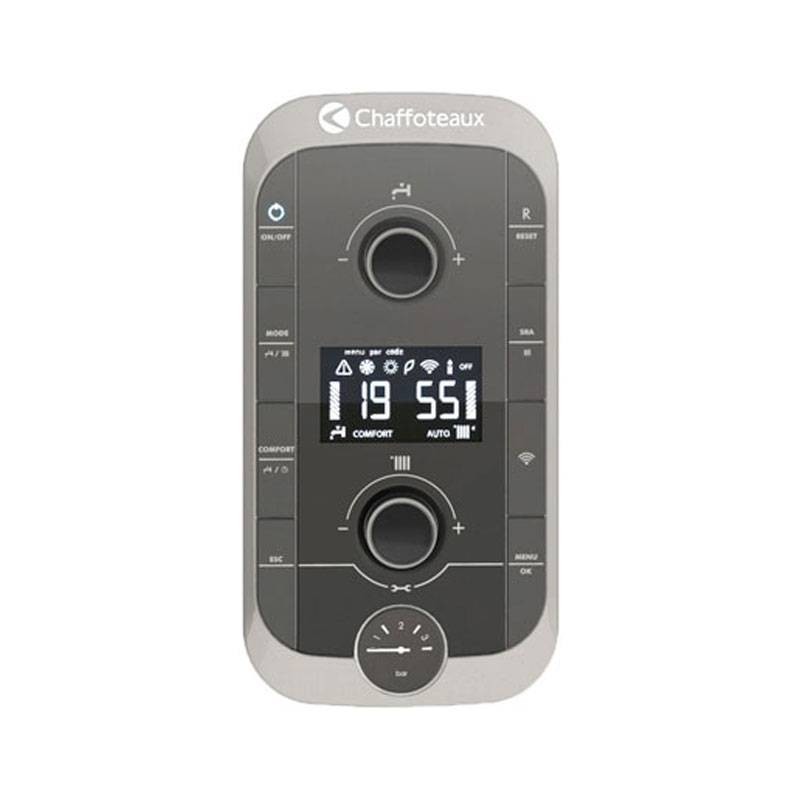

- Expert Control system manager
Chaffoteaux URBIA ADVANCE LINK 25kW MET/LPG/AP Condensation Boiler 3310609
€1,570.55
Tax included
€1,570.55
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 2
: 1
Pay in installments with Klarna
Frequently bought together
MAXIMUM SPIN TECH PERFORMANCE:
- New single loop stainless steel primary exchanger
- Passage sections increased by 142% over previous version
- 1 m more head
- 94% seasonal efficiency
- Class A+ achievable with thermoregulation
- Performance certified by TÜV RHEINLAND Group
MAXIMUM COMFORT:
- 1:10 modulation ratio
- Electronic combustion control E-Burning System
- SRA function
- Gas conversion from the technical menu without the need for a kit
- Chaffolink connectivity integrated in boiler
- Outdoor temperature from the internet thanks to integrated connectivity
SANITARY COMFORT:
- Integrated 316L stainless steel 4-liter mini storage tank
- Sanitary water performance, maximum level according to EN 13203
- Flow rate from 16.0 to 20.1 l/min at ?T = 25ºC
- DHW production controlled by a modulating pump to meet needs without waiting time and at constant temperature, even when withdrawals are very low
- DHW programmer to control time slots for heating the storage tank
EASE OF INSTALLATION:
- Installation in partially protected locations
- Flue exhausts 80, 60, 50 mm
- Intuitive electrical connections
ENERGY SAVING AND ENVIRONMENTALLY FRIENDLY:
- Up to 25% energy savings by combining Expert Control and the SRA function
- Up to 35% energy savings by combining Expert Control, SRA function, outdoor probe and radiant floor
- Reduced pollutant emissions, NOx Class 6
Features:
- CE certified (pin) 0085CS0461
- Connection type C13(X)-C23-C33(X)-C43(X)-C53(X)-C63(X) C83(X)-C93(X) B23-B23P-B33
ENERGY PERFORMANCE:
- Max/min rated heat flow rate in heating (Hi) Q 22/2.5 kW
- Max/min rated heat flow rate in heating (Hs) Q 24.4 / 2.8 kW
- Max/min rated heat flow rate in DHW (Hi) Q 26.0 / 2.5 kW
- Max/min rated heat flow in DHW (Hs) Q 28.9 / 2.8 kW
- Max/min heating output (80°C-60°C) P 21.5 / 2.3 kW
- Max/min heating output (50°C-30°C) P 23.5 / 2.6 kW
- Max/min DHW output P 24.9 / 2.4 kW
- Combustion efficiency (at flue gas) 97.4%
- Efficiency at rated heat input (60/80°C) Hi/Hs 97.7 / 87.9%
- Efficiency at rated heat input (30/50°C) Hi/Hs 107.4 / 96.7%
- Efficiency at 30 % of Qn with return at 30°C Hi/Hs 109.7 / 98.8%
- Efficiency at idle (60/80°C) Hi/Hs 93.5 / 84.2%
- Efficiency stars (dir. 92/42/EEC) ****
- Losses at chimney operating burner 2.1%
EMISSIONS:
- Residual evacuation head 100 Pa
- NOx class 6
- Flue gas temperature (G20) (80°C-60°C) 64 C°
- CO2 content (G20) (80°C-60°C) 8.8%
- CO content (0%O2) (80°C-60°C) 81 ppm
- O2 content (G20) (80°C-60°C) 4.3%
- Maximum flue gas flow rate (G20) (80°C-60°C) 42.4 kg/h
- Air excess (80°C-60°C) 26%
- Condensate pH 3.2 pH
- Max amount of condensate 2.6 l/h
HEATING CIRCUIT:
- Expansion tank precharge pressure bar 1
- Maximum heating pressure bar 3
- Expansion tank capacity l 8
- Min/max heating temperature (high temperature range) °C 35 / 82
- Min/max heating temperature (low temperature range) °C 20 / 45
DHW CIRCUIT:
- DHW temperature min/max 40/65
- Specific DHW flow rate (10 min at ?T=30°C 13.3 l/min
- Instantaneous quantity of hot water ?T=25°C 16.0 l/min
- Instantaneous quantity of hot water ?T=35°C 11.4 l/min
- Sanitary comfort stars (EN13203) ***
- Minimum hot water withdrawal 2 l/min
- DHW pressure max/min 7.0 / 0.2 bar
- DHW storage capacity 4 liters
ELECTRICAL ENVIRONMENTAL DATA:
- Supply voltage/frequency 230 / 50 V/Hz
- Total electrical power consumption 84.7W
- Energy efficiency index of circulator EEI ? 0.23
- Minimum ambient operating temperature >0 C°
- Electrical system degree of protection IPX5D
- Weight 33 kg

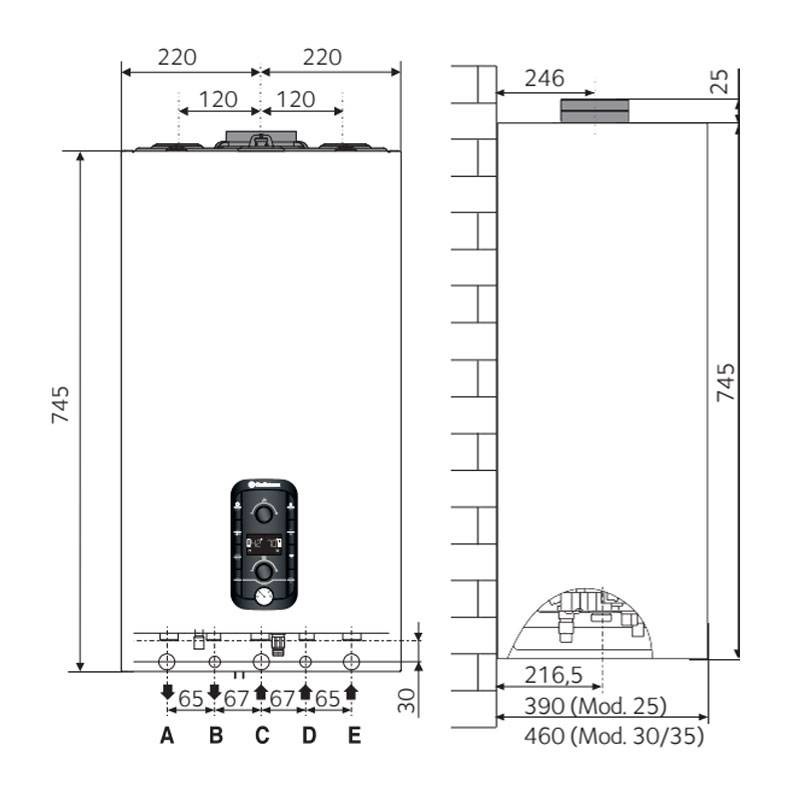

PLUMBING CONNECTIONS:
- Plant delivery Ø 3/4 gas
- Sanitary outlet Ø 1/2 gas
- Gas inlet Ø 3/4 gas
- Sanitary inlet Ø 1/2 gas
- System return Ø 3/4 gas
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas/LPG/Propane
- Thermal power: 25 kW
- Energy class: A
- Series: Urbia Advance Link
