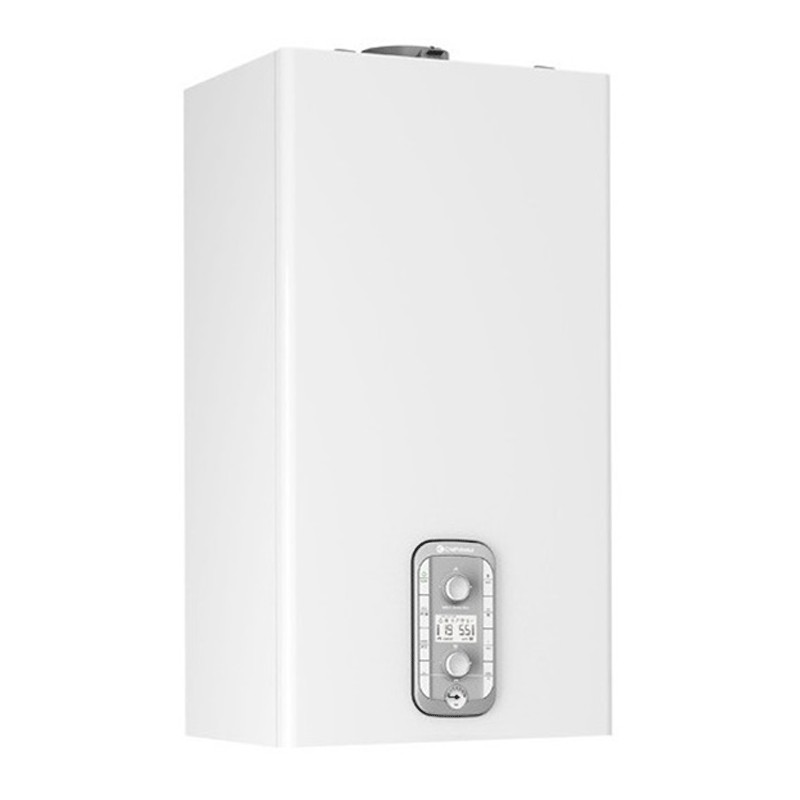

Chaffoteaux Pigma Advance 30kW Condensing Gas Boiler 3310623
CFF 3310623
3234090853001
Chaffoteaux Pigma Advance Gas Condensing Boiler the efficient, high-performance solution.
Featuring the innovative SpinTech exchanger and ready for connectivity, it's perfect for customers who want affordable comfort.
Strengths:
- Power 30kW
- Natural gas/LPG/Propane air operation with conversion kit included
- Heating energy class A
- Sanitary energy class A
- XL withdrawal profile
Compatible accessories:
- Coaxial exhaust flue kit 60/100 L 1000 3318073.
Chaffoteaux Pigma Advance 30kW Condensing Gas Boiler 3310623
€1,236.49
Tax included
€1,236.49
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 8
: 9
Pay in installments with Klarna
Frequently bought together
Maximum Spin Tech performance:
- New single loop stainless steel primary exchanger
- Cross sections increased by 142% compared to previous version
- 1 m more head
- Seasonal efficiency at 94%.
- Class A+ thanks to the standard thermoregulation accessories
- Performance certified by TÜV RHEINLAND Group
Maximum Comfort:
- 1:7 modulation ratio
- Optimized internal silencer
- SRA function
- Gas conversion from technical menu with kit included
- Chaffolink connectivity integrated in boiler optional not included
Easy installation:
- Installation in partially protected locations
- Flue gas exhausts 80, 60, 50 mm
- Intuitive electrical connections
Energy saving and environmentally friendly:
- Up to 20% energy savings when combined with Expert Control and the SRA function
- Up to 30% energy saving by combining Expert Control, SRA function, outdoor sensor and radiant floor heating
- Low pollutant emissions, NOx Class 6
Features:
- Max/min nominal heat input in heating mode (Hi) Q 28,0/4,3 kW
- Max/min nominal heat flow rate in heating mode (Hs) Q 31,1 / 4,8 kW
- Max. nominal heat flow rate for DHW/min (Hi) Q 30.0 / 4.3 kW
- Max. domestic hot water flow rate/min (Hs) Q 33.3 / 4.8 kW
- Max. heating output/min (80°C-60°C) P 27.4 / 3.9 kW
- Max/min heating output (50°C-30°C) P 30 / 4,0 kW
- Max. output power/min DHW P 28,7 / 4,1 kW
- Combustion efficiency (at flue gas) 98,0%
- Efficiency at nominal heat flow rate (60/80°C) Hi/Hs 97,9 / 88,2%
- Efficiency at nominal heat flow rate (30/50°C) Hi/Hs 107,3 / 96,6%
- Efficiency at 30 % of Qn with return at 30°C Hi/Hs 109,6 / 98,7%
- Yield at minimum (60/80°C) Hi/Hs 91,1 / 82%
- Losses at the chimney with burner operating 2.0%
Emissions:
- Residual evacuation head Pa 100
- NOx class 6
- Flue gas temperature (G20) (80°C-60°C) 62 degrees
- CO2 content (G20) (80°C-60°C) max/min % 9.2 / 8.9
- CO content (0%O2) (80°C-60°C) ppm 123.8
- O2 content (G20) (80°C-60°C) 4,2%
- Maximum smoke flow rate (G20) (80°C-60°C) kg/h 48,6
- Air excess (80°C-60°C) 25%
- Condensate pH 3.2
- Max quantity of condensate 3,25 l/h
Heating circuit
- Expansion tank preloading pressure bar 1
- Maximum heating pressure bar 3
- Expansion tank capacity 8 liters
- Heating temperature min/max (high temperature range) °C 35 / 82
- Min/max heating temperature (low temperature range) °C 20 / 45
Sanitary circuit
- DHW temperature min/max °C 36 / 90
- Specific DHW flow rate (10 min. with ?T=30°C l/min 14,5
- Instantaneous quantity of hot water ?T=25°C l/min 17,4
- Instantaneous hot water quantity ?T=35°C l/min 12,5
- Minimum hot water withdrawal l/min 2
- Sanitary water pressure max/min bar 7,0 / 0,2
Electrical data:
- Supply voltage/frequency V/Hz 230 / 50
- Total electric power consumption 83W
- Energy efficiency index of the circulator EEI ? 0,23
- Minimum ambient temperature of use* °C >0
- Degree of protection of electrical system IP X5D
- Weight 32,3 Kg
- Dimensions: 400x385x745 mm
Connections:
- System delivery Ø 3/4 gas
- Sanitary outlet Ø 1/2 gas
- Gas inlet Ø 3/4 gas
- Sanitary inlet Ø 1/2 gas
- System return Ø 3/4 gas
There are no reviews
Data sheet
- Type: Boilers
- Thermal power: 30 kW
- Energy class: A
- Series: Pigma Advance
