Condensation boiler Chaffoteaux CX Green EU2 29kW MET/LPG 3310646
KIT 3310646
3234090853964
Chaffoteaux CX Green EU2 29kW condensing boiler, wall-mounted compact, MET/LPG operation with kit as standard:
- Heating energy class A
- Sanitary energy class A
- XL withdrawal profile
- Power 29kW.

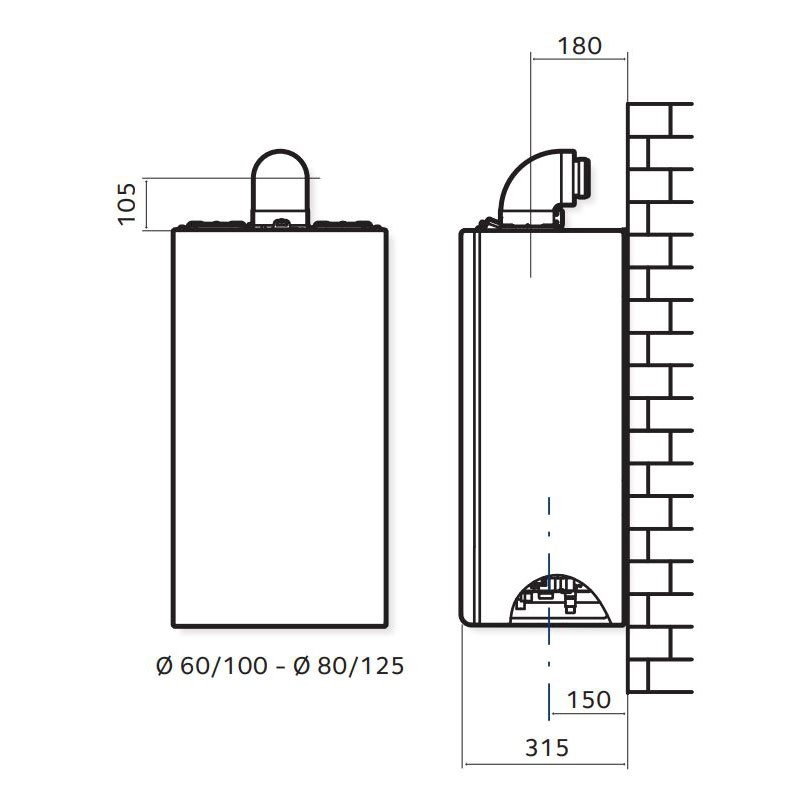

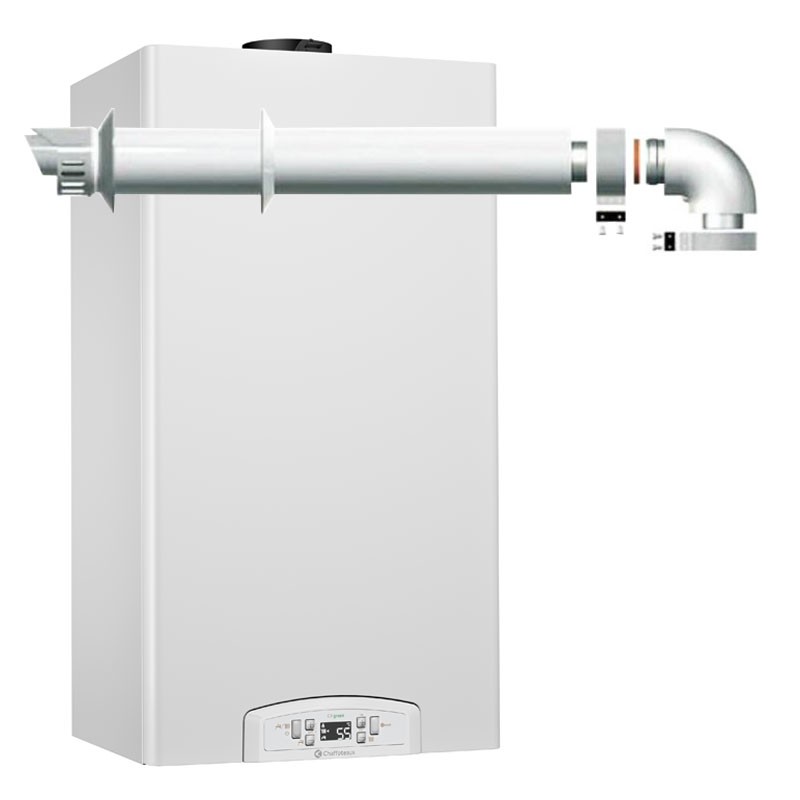

Includes Coaxial Kit diameter 100/60 for smoke exhaust (code 3318073).
Condensation boiler Chaffoteaux CX Green EU2 29kW MET/LPG 3310646
€1,076.86
Tax included
€1,076.86
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 11
Pay in installments with Klarna
Frequently bought together
- -50%
- -50%
The compact condensing boiler with aluminium alloy condensing exchanger and all the necessary requirements to achieve the required energy saving standards.
The new internal design ensures better accessibility to internal components during maintenance and installation.
Sanitary Comfort:
- Stainless steel sanitary exchanger
- Sanitary Water Performance: 3 stars.
Heating Comfort:
- Efficiency up to 108% with energy saving up to 35%.
- 4 stars combustion efficiency in compliance with EN92/42 standard
- Condensing exchanger in aluminium alloy
- Reduced polluting emissions, NOx Class 6
- High efficiency circulator with continuous modulation
- Possibility of connection with external probe
- Compatible with Expert Control, modulating and on-off accessories
- Possibility of managing single-temperature and multi-temperature zones
- Self-diagnosis system with code
- LCD display.
Energy Performance:
- Max/min nominal heat input in heating mode (Hi) 29.0 / 9.5 kW
- Max/min nominal heat input in sanitary mode (Hi) 29.0 / 9.5 kW
- Efficiency at nominal heat flow rate (60/80°C) Hi/Hs 97.8 / 88.0%
- Efficiency at nominal heat flow rate (30/50°C) Hi/Hs 104.0 / 93.7%
- Efficiency at 30°C Hi 107,7%.
Heating:
- Expansion vessel capacity 8 litres
- Heating temperature min/max (high temperature range) 35/82 Degrees
- Min/max heating temperature (low temperature range) 20/45 Degrees
- Energy efficiency class for space heating A.
Domestic hot water:
- Min/max sanitary temperature 36/60 Degrees
- Specific DHW flow rate (10 min. with ?T=30°C) 13.2 l/m
- Instantaneous quantity of hot water ?T=25°C 15.8 l/m
- Instantaneous quantity of hot water ?T=35°C 11,3 l/m
- Minimum hot water withdrawal >2 l/m
- Energy efficiency class for hot water production A
- Withdrawal profile XL.
Electrical data:
- Supply voltage/frequency 230/50V/Hz
- Total electrical power consumption 81 W
- Electrical protection class IP X5D.

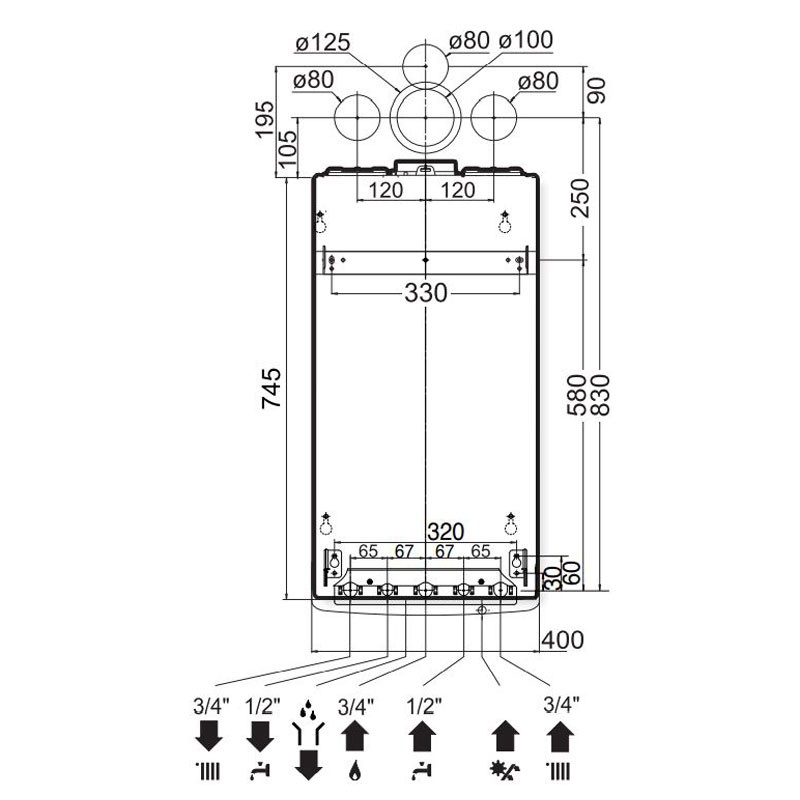

Connections:
- System delivery diameter 3/4" GAS
- Hot water outlet diameter 1/2" GAS
- Gas inlet diameter 3/4" GAS
- Cold sanitary inlet diameter 1/2" GAS
- System return diameter 3/4" GAS.
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas/LPG
- Thermal power: 29 kW
- Energy class: A
- Series: CX Green EU2
