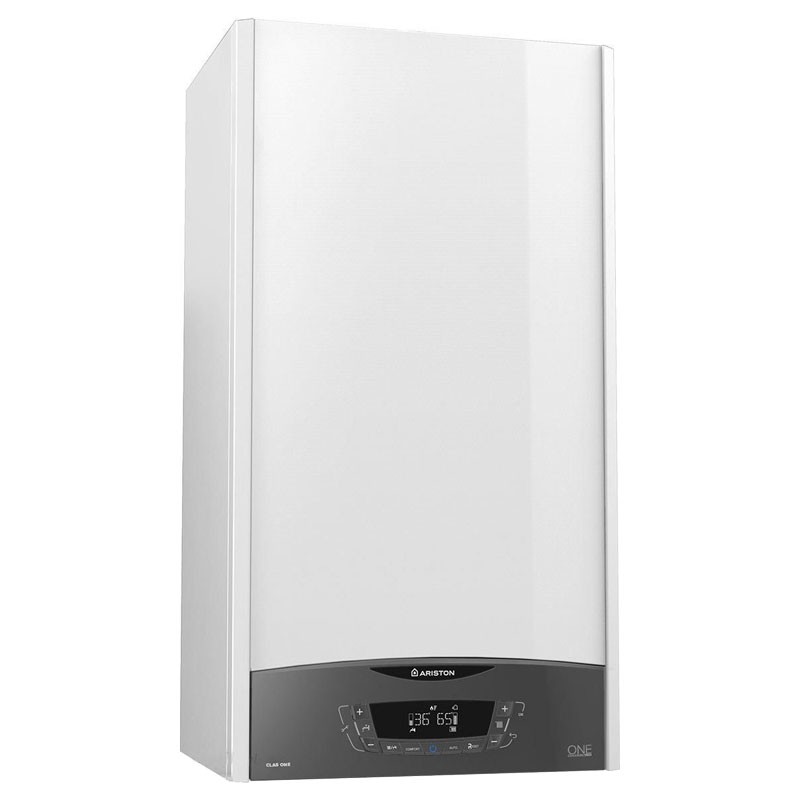

Condensation boiler Ariston CLAS ONE 30KW Methane 3301022
ARS 3301022
3234090829082
Ariston CLAS ONE 30KW Watertight Condensation boiler prepared for Wi-Fi connection with CUBE S NET thermostat (code 3319126). Energy class A, Energy class in sanitary ware A, XL withdrawal profile.
Methane and LPG operation with conversion kit included as standard.
Condensation boiler Ariston CLAS ONE 30KW Methane 3301022
€1,230.50
Tax included
€1,230.50
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 1
Pay in installments with Klarna
Frequently bought together
Advantages:
- XtraTech exchanger in stainless steel, exclusive to Ariston, with high head
- Exchanger passage sections +142% compared to the previous version

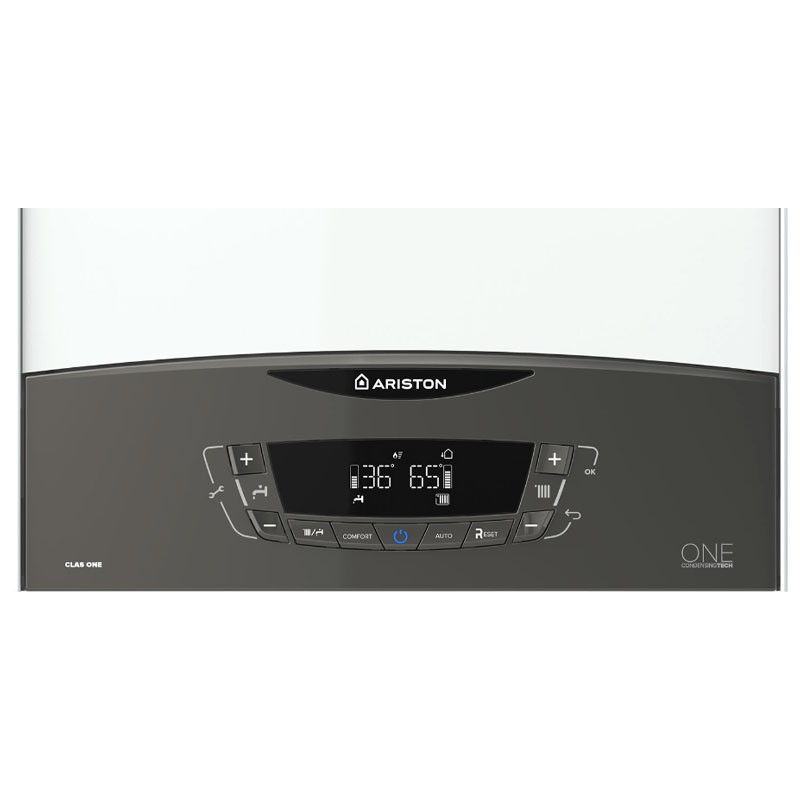

- LCD display
- Class A+ in heating mode achievable with temperature control
- Modulation ratio 1:7
- Ready for Ariston NET connectivity
- BusBridgeNet® communication protocol
- AUTO, Comfort function
- Optimised internal silencer
- Installation in partially protected places
- Flue outlet 80, 60, 50 mm.
NEW PER4MANCE SYSTEM 4 technologies for exclusive performance:
- New XTRATECH exchanger: Maximum quality
- Absolute Efficiency
- Energy Class A+
- Always connected with Ariston NET
- Full Control, Total Comfort.
HEATING WITH MAXIMUM DURATION, XTRATECH HEAT EXCHANGER:
- The new patented ExtraTech heat exchanger is the heart of ONE condensing technology for heating, designed to ensure performance with maximum durability over time.
ABSOLUTE EFFICIENCY:
The ONE condensing technology and the accessories for thermoregulation improve efficiency and performance, reaching up to energy class A+. Alteas ONE and Genus ONE are also equipped with the innovative Ignition System with electronic combustion control and gas adaptability. The system is able to automatically identify the characteristics of the gas, providing consistent heating performance, advanced control and safety in all conditions.
Features:
- CE certification (pin) 0085CR0393
- Max/min nominal heat input in heating mode (Hi) 28,0 / 4,3 kW
- Max/min nominal heat input in heating mode (Hs) Qn 31.1 / 4.8 kW
- Max. domestic hot water flow rate/min (Hi) Qn 30.0 / 4.3 kW
- Max. domestic hot water flow rate/min (Hs) Qn 33.3 / 4.8 kW
- Max/min heating capacity (80°C-60°C) Pn 27.4 / 3.9 kW
- Max/min heating capacity (50°C-30°C) Pn 30 / 4.5
- Max/min heating capacity (domestic) Pn 28.7 / 4.1 kW
- Combustion efficiency (at flue gas) 98
- Efficiency at nominal heat input (60/80°C) Hi/Hs97.9 / 88.2%
- Efficiency at nominal heat input (30/50°C) Hi/Hs 107,3 / 96,6%
- Efficiency at 30 % at 30°C (condensation) Hi/Hs 109,6 / 98,7%
- Efficiency at minimum (60/80°C) Hi/Hs 91,1 / 82%
- Losses at chimney with burner operating 2%
- Residual evacuation head Pa 100
- Nox class 5
- Smoke temperature (G20) (80°C-60°C) °C 62
- CO2 content (G20) (80°C-60°C) max /min 9,2 / 8,9%
- Flue gas mass flow rate (G20) (80°C-60°C) 48,6 Kg/h
- Air surplus (80°C-60°C) 25%
- Expansion tank preloading pressure bar 1
- Maximum heating pressure bar 3
- Expansion tank capacity 8 litres
- Min/max heating temperature (high temperature range) 35 / 82 Degrees
- Heating temperature min/max (low temperature range) 20 / 45 Degrees
- Min/max sanitary temperature - CLAS ONE 36/90 Degrees
- Min/max sanitary temperature - CLAS ONE SYSTEM 40/60 Degrees
- Specific DHW flow rate (10 min. with ?T=30°C) - CLAS ONE 14.5 l/min
- Instantaneous quantity of hot water ?T=25°C - CLAS ONE 17,4 l/min
- Instantaneous hot water quantity ?T=35°C - CLAS ONE 12,5 l/min
- Minimum hot water withdrawal - CLAS ONE l/min 2,0
- Max domestic water pressure/min bar 7 / 0,2
- Power supply voltage/frequency V/Hz 230 / 50
- Total electric power consumption 83W
- Circulator energy efficiency index > 0,23
- Protection rating of electrical system IP X5D
- Weight 32,3 Kg.
Connections:
- Plant delivery Ø 3/4 gas
- Sanitary outlet Ø 1/2 gas
- Gas inlet Ø 3/4 gas
- Sanitary inlet Ø 1/2 gas
- System return Ø 3/4 gas.
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas/LPG
- Thermal power: 30 kW
- Energy class: A
- Series: Clas one
