Chaffoteaux Built-in Condensation Boiler Inoa Green In 25kW MET/LPG 3310578
CFF 3310578

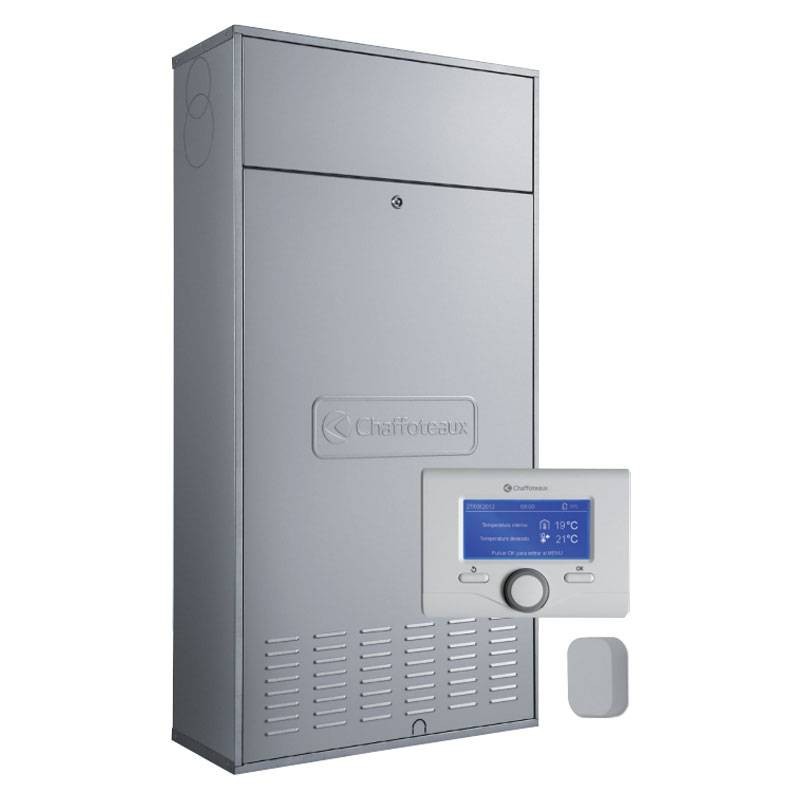

Chaffoteaux instantaneous built-in condensing boiler model Inoa Green In:
- Max heating/sanitary heat output 23.5kW
- XL profile
- Built-in sheet metal model to be ordered separately code 3318398
- Aluminum alloy condensing exchanger
- Natural gas and LPG operation with conversion kit included as standard
- Energy class A
Standard accessories included:
- Expert Control system manager code 3318870
- Wired outdoor probe code 3318599
Purchase separately: Sheet metal built-in unit code 3318398.
Chaffoteaux Built-in Condensation Boiler Inoa Green In 25kW MET/LPG 3310578
€1,066.52
Tax included
€1,066.52
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 3
: 2
Pay in installments with Klarna
Frequently bought together
Inoa Green In is the essence of condensing technology. Thanks to the built-in sheet metal unit (to be ordered with a separate code), it is the ideal solution for reclaiming living space, while still guaranteeing practicality of use thanks to theExpert Control provided as standard. Aluminum alloy condensing exchanger
SANITARY COMFORT:
- Stainless steel sanitary exchanger
- Sanitary flow rate from 12 l/min (T= 30°C) according to EN625 standard
HEATING COMFORT:
- Efficiency up to 108% on PCI with energy savings up to 35%.
- 4-star combustion efficiency according to EN 92/42 standard
- Useful heat output up to 23.5 kW
- Modulation ratio1:4
- Low pollutant emissions, NOx Class 6
- High-efficiency circulator with continuous modulation to improve acoustic comfort and reduce energy consumption
- Basic climatic temperature control, depending on outdoor temperature
- System manager allows setting and display of operating mode, temperatures, self-diagnosis, control information, and last failure history
COMFORT OF USE AND INSTALLATION:
- On-board mechanical boiler filling
- Expert Control system manager and external probe as standard
- Universal flush-mounted unit in electro-galvanized sheet metal bath with complete arrangements for flue gas discharge and plumbing connections
- Electrical degree of protection IPX5D and guaranteed operation down to -20°C
- Prepared for the management and lintegration of only natural circulation solar thermal systems
Features:
- Installation type C13-C23-C33-C43-C53-C63-C83-C93-B23
- Gas category I2H
ENERGY PERFORMANCE:
- Max/min heating nominal heat flow rate (Hi) kW 23.5/5.5
- Max/min nominal heat output in sanitary mode (Hi) kW 23.5/5.5
- Max/min heating heat output (80°C-60°C) kW 22.9/5.3
- Max/min heating heating capacity (50°C-30°C) kW 24.4/5.9
- Max/min sanitary heating capacity kW 22.9/5.3
- Combustion efficiency (at flue gas) 97.2%
- Efficiency at rated heat input (60/80°C) Hi/Hs % 97.5/88
- Efficiency at rated heat input (30/50°C) Hi/Hs % 103.9/93.5
- Efficiency at 30°C Hi % 108.3
- Efficiency at idle (60/80°C) Hi/Hs % 96.1/86.5
- Efficiency stars (dir. 92/42/EEC) 4
- Sedbuk class A rating
- Maximum heat loss at the shell (?T = 30°C) % 0.2
- Losses at chimney operating burner % 2.2
HEATING:
- Expansion tank precharge pressure bar 1
- Maximum heating pressure bar 3
- Expansion tank capacity l 6.5
- Min/max heating temperature (high temperature range) °C 35/82
- Min/max heating temperature (low temperature range) °C 20/45
Energy efficiency class for space heating A
DOMESTIC HOT WATER:
- DHW min/max temperature °C 36/60
- Specific flow rate in DHW (10 min at ?T=30°C) l/m 10.5
- Instantaneous quantity of hot water ?T=25°C l/m 13.1
- Instantaneous quantity of hot water ?T=35°C l/m 9.4
- Sanitary comfort stars (EN13203) 3
- Minimum hot water withdrawal l/m <2
- Max sanitary water pressure bar 7/0.3
- Maximum inlet temperature (solar) °C 60
Energy efficiency class for hot water production A
EMISSIONS:
- Residual head Pa 100
- NOx class 6
- Flue gas temperature G20 at 60/80 G20 °C 65
- CO2 content (G20) (80°C-60°C) % 9.4
- CO content (0%O2) (80°C-60°C) ppm 177
- O2 content (G20) (80°C-60°C) % 3.8
- Maximum flue gas flow rate (G20) (80°C-60°C) kg/h 37.2
- Air excess (80°C-60°C) % 22
ELECTRICAL DATA:
- Supply voltage/frequency V/Hz 230/50
- Total electrical power consumption W 80
- Minimum ambient operating temperature* °C -15
- Electrical system degree of protection IP X5D

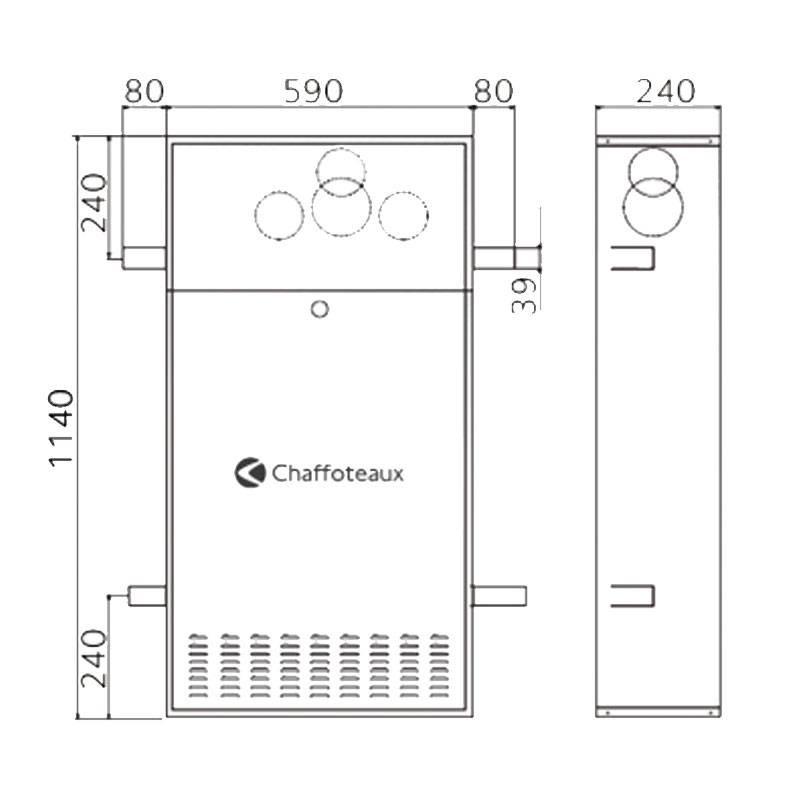

DIMENSIONS:
- Width 590 mm - Height 1140 mm - Depth 240 mm
- Weight 24 kg
FITTINGS:
- Plant delivery ø 3/4 gas
- Hot sanitary outlet ø 1/2 gas
- Gas inlet ø 3/4 gas
- Sanitary cold inlet ø 3/4 gas
- System return ø 3/4 gas
- Hot sanitary inlet for solar integration ø 1/2 gas (with mixing valve kit 3318408-3318484)
- Sanitary cold inlet for solar integration ø 1/2 gas (with mixing valve kit 3318408-3318484)
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas/LPG
- Thermal power: 25 kW
- Energy class: A
- Series: Inoa Green In
