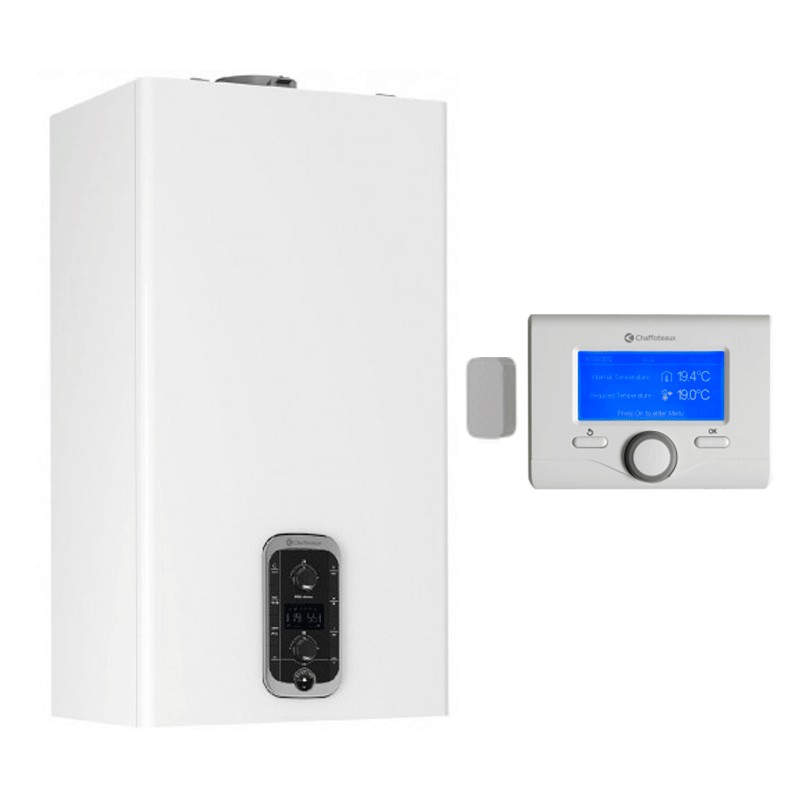

Chaffoteaux Mira Advance Link 35kW Condensing Gas Boiler 3310614
CFF 3310614
3234090852912
Chaffoteaux Mira Advance Link Gas Condensing Boiler Powerful soul for amazing control.
Featuring the innovative SpinTech exchanger, it excels in its class with electronic combustion control, integrated Chaffolink connectivity and allExpert Control and outdoor probe as standard.
Strengths:
- 35 kW power
- Natural gas/LPG/Propane air operation without the need of a kit
- Heating energy class A+
- Sanitary energy class A
- XXL withdrawal profile
- Boiler integrated connectivity gateway
Compatible accessories:
- Coaxial exhaust flue kit 60/100 L 1000 3318073
Chaffoteaux Mira Advance Link 35kW Condensing Gas Boiler 3310614
€1,630.68
Tax included
€1,630.68
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Items Available: 4
Pay in installments with Klarna
Frequently bought together
Maximum Spin Tech performance:
- New single loop stainless steel primary exchanger
- Cross sections increased by 142% compared to previous version
- 1 m more head
- Seasonal efficiency at 94%.
- Class A+ thanks to the standard thermoregulation accessories
- Performance certified by TÜV RHEINLAND Group
Maximum Comfort:
- 1:10 modulation ratio
- Electronic combustion control E-Burning System
- SRA function
- Gas conversion from the technical menu without the need for a kit
- Chaffolink connectivity integrated in the boiler
- External temperature from internet thanks to the integrated connectivity
Easy installation:
- Installation in partially protected locations
- Flue gas exhausts 80, 60, 50 mm
- Intuitive electrical connections
Energy saving and environmentally friendly:
- Up to 25% energy savings in combination with Expert Control and the SRA function
- Up to 35% energy savings by combining Expert Control, SRA function, outdoor sensor and radiant floor heating
- Low pollutant emissions, NOx Class 6
Features:
- Max/min nominal heat input in heating mode (Hi) Q 31/3,5 kW
- Max/min nominal heat flow rate in heating mode (Hs) Q 34,4/3,9 kW
- Max/min nominal heat flow rate for sanitary applications (Hi) Q 34.5/3.5 kW
- Max. nominal heat flow rate in heating mode/min (Hs) Q 38.3/3.9 kW
- Max/min heating output (80°C-60°C) P 30.3/3.3 kW
- Max/min heating output (50°C-30°C) P 33.5/3.6 kW
- Max/min heating output (sanitary) P 33,1/3,4 kW
- Combustion efficiency (at flue gas) 97,8%
- Efficiency at nominal heat input (60/80°C) Hi/Hs 97,7/88,0%
- Efficiency at nominal heat input (30/50°C) Hi/Hs 108,0/97,2%
- Efficiency at 30 % of Qn with return at 30°C Hi/Hs 109,5/98,6%
- Efficiency at minimum (60/80°C) Hi/Hs 93,5/84,2%
- Losses at chimney with burner working 2,2%
- Residual evacuation head Pa 100
- NOx class 6
- Smoke temperature (G20) (80°C-60°C) 66 degrees
- CO2 content (G20) (80°C-60°C) 8.8%.
- CO content (0%O2) (80°C-60°C) ppm 98.8
- O2 content (G20) (80°C-60°C) 4.5%.
- Maximum smoke flow rate (G20) (80°C-60°C) 55,7 Kg/h
- Excess air (80°C-60°C) 27%.
- Condensate pH 3,2
- Max quantity of condensate 3,88 l/h
Heating circuit
- Expansion tank precharge pressure 1 bar
- Maximum heating pressure 3 bar
- Expansion tank capacity 8 liters
- Min/max heating temperature (high temperature range) 35/82 degrees
- Min/max heating temperature (low temperature range) 20/45 degrees
Sanitary Circuit
- Min/max sanitary temperature 36/60 degrees
- Specific DHW flow rate (10 min. with ?T=30°C) 16.5 l/min
- Instantaneous hot water flow ?T=25°C 19,8 l/min
- Instantaneous hot water flow ?T=35°C 14,1 l/min
- Minimum hot water withdrawal 2 l/min
- Domestic water pressure max/min 7/2 bar
Electrical data:
- Supply voltage/frequency V/Hz 230 / 50
- Total electric power consumption 82W
- Energy efficiency index of the circulator EEI ? 0,23
- Minimum ambient temperature of use (-5°C with standard antifreeze heater kit code 3318949) >0 Degrees
- Electrical system protection degree X5D
- Weight 34,6 Kg
- Dimensions: 400x745x385 mm
Connections:
- System delivery Ø 3/4 gas
- Sanitary outlet Ø 1/2 gas
- Gas inlet Ø 3/4 gas
- Sanitary inlet Ø 1/2 gas
- System return Ø 3/4 gas
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas/LPG/Propane
- WIFI: Integrated
- Thermal power: 34 kW
- Energy class: A+
- Series: Mira Advance Link
