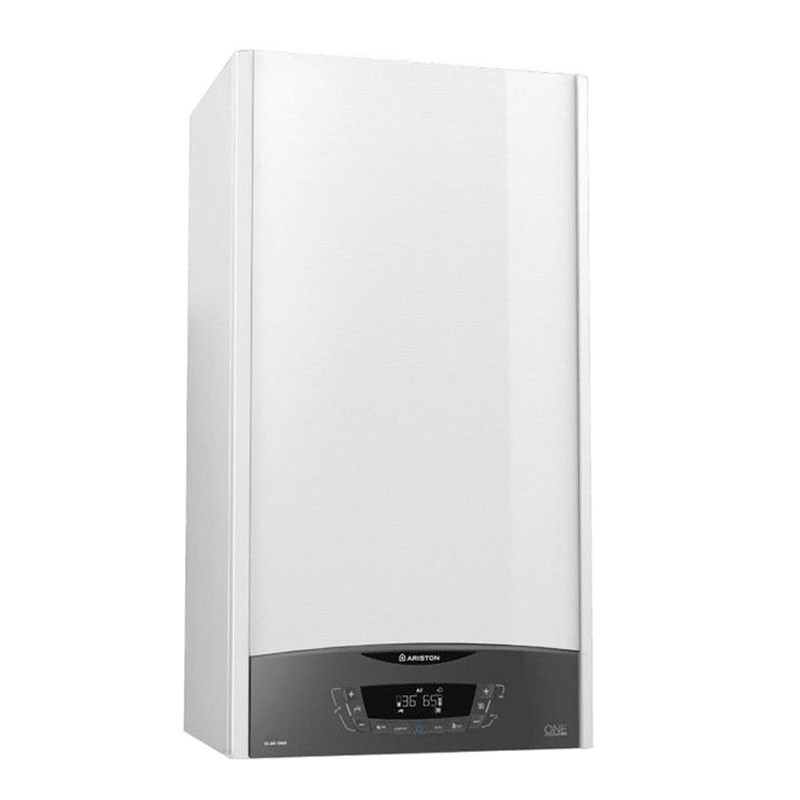

Ariston CLAS ONE SYSTEM 35kW Methane Watertight Condensation Boiler 3301032
ARS 3301032
5414849692008
Ariston CLAS ONE SYSTEM 35kW Methane sealed condensing boiler for heating only, ideal for creating systems (hybrid, solar, boiler with external tank). It is built on the basis of the new Per4mance System of the ONE Series with four technologies that ensure particularly high performance. Energy class A.
Integrated three-way valve and boiler probe as standard, Methane and LPG operation with conversion kit included as standard.
Ariston CLAS ONE SYSTEM 35kW Methane Watertight Condensation Boiler 3301032
€1,270.56
Tax included
€1,270.56
Tax included
Tax included
-20€
EXTRA
Add the coupon code in the payment page
Limited-time promotion
Out of stock
Incoming
Pay in installments with Klarna
Frequently bought together
Auto function:
- Maximum comfort, efficiency and energy saving based on automatic analysis of environmental conditions, connected external devices and required performance.
Comfort Function:
- speeds up the delivery of hot water in two modes: Comfort Plus Mode (always hot water in just 5") and Comfort Mode (hot water for 30' after the last draw).
Advantages:
- Maximized durability thanks to Ariston's exclusive XtraTech heat exchanger
- Compact structure for easy installation

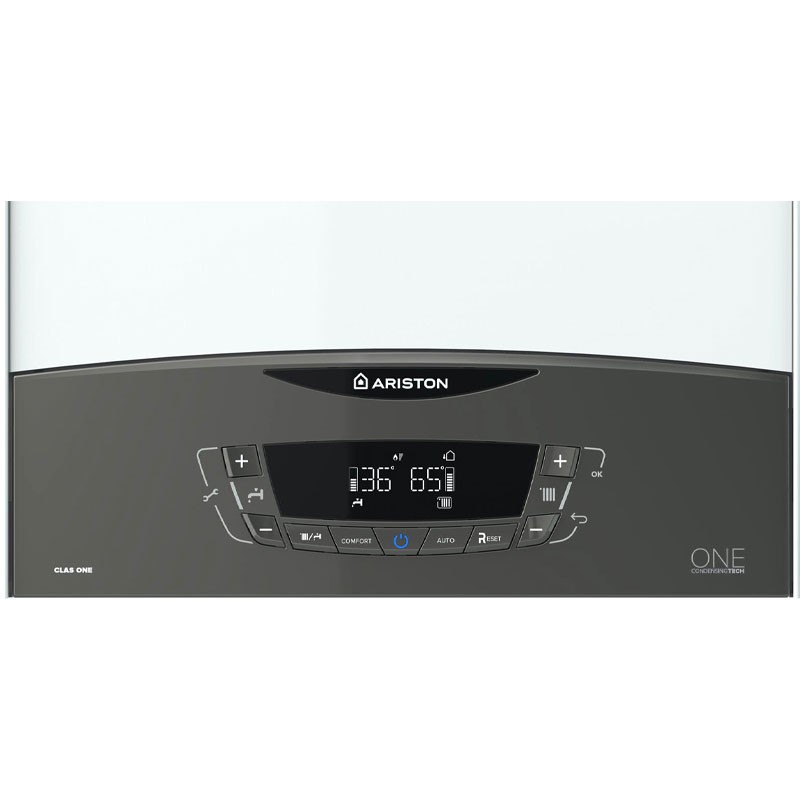

- LCD display
- Compatible with the CUBE S NET Wi-Fi thermostat that allows connection to the Ariston NET App
- Compatible with the Ariston NET App for remote control
- Class A+ in heating mode achievable with thermoregulation
- Modulation ratio 1:7
- Ready for Ariston NET connectivity
- BusBridgeNet® communication protocol
- AUTO function
- Optimized internal silencer
- Installation in partially protected places
- Smoke outlet 80, 60, 50 mm.
Characteristics
- max/min nominal heat input for heating PCI kW 31.0 / 5.0
- max. nominal heat output/min heating PCI kW 34.5 / 5.0
- max/min heating capacity PCI kW 30.2 / 4.7
- efficiency at nominal heat output (60/80° c) PCI % 97,5
- efficiency at nominal heat output (30/50° c) PCI % 108,2
- Efficiency at 30% (30° c) PCI % 109,6
- max/min heating temperature (high temperature) °C 82 / 35
- max/min heating temperature (low temperature) °C 45 / 20
- 45/20 °C Max. temp. / min. sanitary °C
- minimum operating temperature (-5°C with antifreeze kit)* °C > 0°.
- Nox class class 6
- Flue gas temperature (G20) (80°C-60°C) °C 63
- CO2 content (G20) (80°C-60°C) max /min % 9,2 / 8,9
- Flue gas mass flow rate (G20) (80°C-60°C) Kg/h 56,1
- Air excess (80°C-60°C) 26
- Expansion tank preloading pressure bar 1
- Maximum heating pressure bar 3
- Min/max heating temperature (high temperature range) °C 35 / 82
- Heating temperature min/max (low temperature range) °C 20 / 45
- Power supply voltage/frequency V/Hz 230 / 50
- Total electrical power consumption 84W
- Energy efficiency index of the circulator > 0,23
- Minimum ambient temperature (*) °C -5
- Protection rating of electrical system IP X5D
- Weight 34,6 Kg.
Connections
- System delivery Ø 3/4 gas (cylinder delivery if present)
- Boiler return (if present) Ø 1/2 gas
- Gas inlet Ø 3/4 gas
- System water inlet Ø 1/2 gas
- System return Ø 3/4 gas
There are no reviews
Data sheet
- Type: Boilers
- Model: Natural gas/LPG
- Thermal power: 34 kW
- Energy class: A
- Series: Clas one System
